The placement of vertical rebar is critical to any concrete block project. Since Omni Block is an insulated system that provides unsurpassed thermal efficiency, the insulation inserts need to be installed in all un-grouted cells.

Structural engineering always “trumps” insulation, but hopefully structural engineers keep the rebar and grout to a minimum without sacrificing structural strength. All Omni Block buildings are individually engineered and the vertical frequency varies depending upon many structural considerations. One #5 rebar every 48″ vertically and the use of standard ladder rod every other course in lieu of horizontal bond beams provides the most ideal situation.

Single Shot

Note that at every corner and at every window and door jamb there is an 8″ cell that is fully grouted with the appropriate rebar. Once those are placed then the interior cells are determined and are fully grouted with rebar.

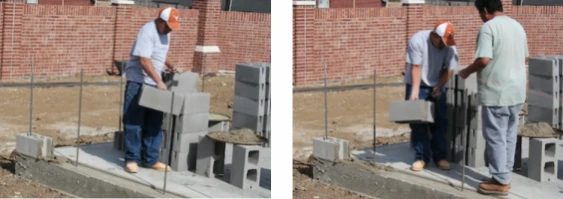

Mason handles and butters the block as though it were standard CMU.

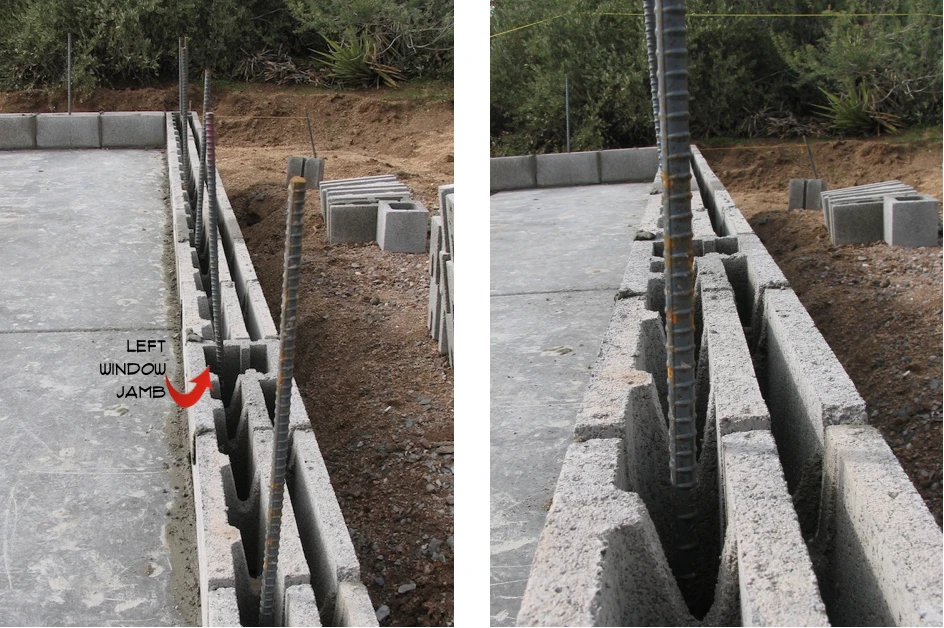

Jamba Inferior Izquierda

First course properly laid and now is ready for the insulation inserts to be installed while the mortar is still wet.

Inserts should always be installed while the mortar is still wet. Installing the inserts before the mortar dries allows for the slight movement of the mortar to accommodate the inserts. If a mason waits until the next day, then the mortar is set and no latitude is afforded the installation of the inserts.

Primer curso de aislamiento

After the inserts are placed, the isolated grout cells become readily visible.

To view a comprehensive detailed sample layout with block and specific rebar placement click on Shop Drawing.
