The System 20

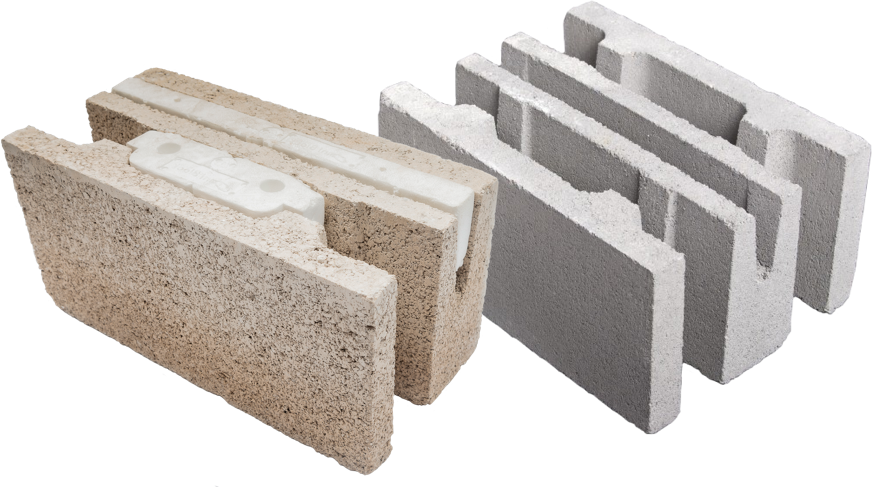

Omni Block is a unique block that is multi-layered with constricted cross webbing that create individual cells that are filled with foam insulation inserts. It is a stand alone wall system that should not be furred, additionally insulated or sheetrocked. It is recommended to plaster the interior of the block with standard sheetrock compound to exactly match any adjoining interior sheetrock (see INSTALLATION section) walls.
Omni Block can also be left exposed on the interior, exterior or both. This type of construction economically provides finish options that other types of construction cannot provide.

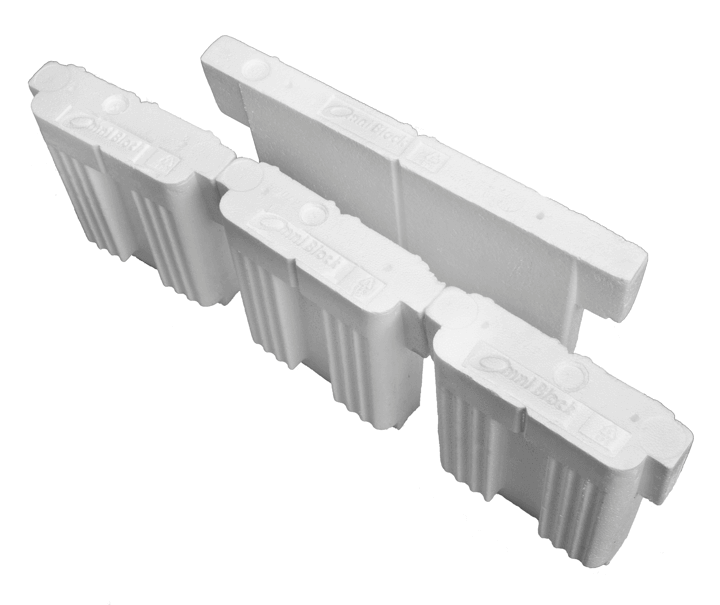

The inserts come in two sizes; Long and Short. Each fits into its corresponding block cavity. The inserts are 3/8″ taller than the block in order to insulate the horizontal mortar joints. The vertical mortar joints are insulated due to the overlapping feature (from block-to-block) of the short insert. The “whole wall” is insulated, not just individual block.
The inserts are Expanded Polystyrene (EPS) and not only provide excellent insulation, but have other favorable properties such as; they are non-toxic, do not “out-gas”, have minimal flame spread characteristics, and are manufactured with a closed looped steam process that has virtually no carbon footprint on the earth.
For detailed information visit Insulation Inserts. Note that this link takes you to the Installation Process section.
In addition to standard grey block, most distributors can integrally color, score, burnish, and split Omni Block, all providing lasting finishes that dramatically decrease life cycle costs.

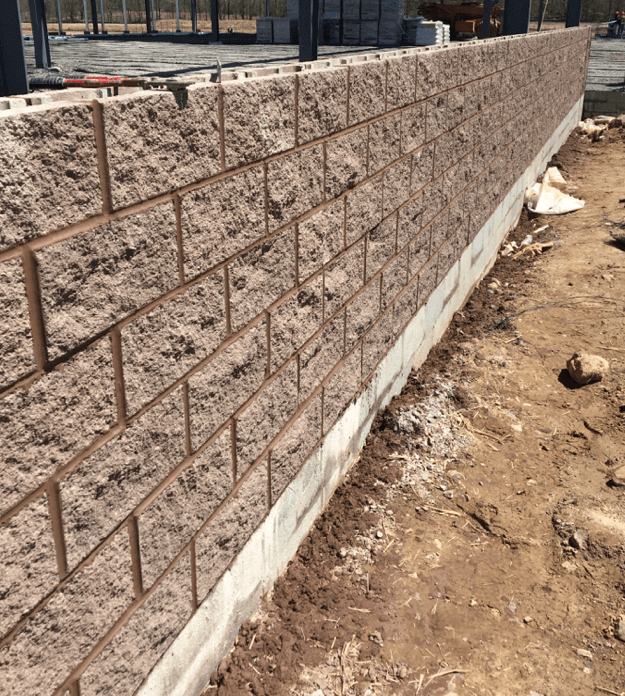

Photo supplied by Phelps Cement Products, Phelps, NY.
Locally quarried aggregates will produce a variety of standard colors at local production plants. Custom colors with special aggregates are also available.
The System 30
The System 12 is primarily used in commercial and institutional type buildings because these buildings typically require more structural strength that is provided by not only the larger block but the additional rebar and grout that the block can accommodate without sacrificing energy efficiency.
The System 12 adds another layer of masonry and another layer of insulation, resulting in four layers of masonry and three layers of insulation. The long and short insulation inserts shown above are also used in the System 12.

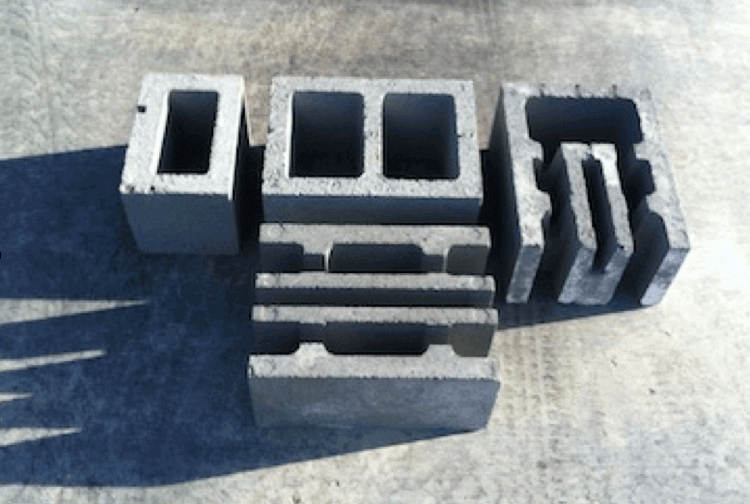

The complete Omni Block System 12 consists of four types of block, the Omni Stretcher unit is the most commonly used and the Omni Jamb which are alternatively stacked for in-line piers and window and door jambs. Also required at window and door jambs are the standard 12″x8″x8″ half block. There are situations that call for a closed-ended block on both ends and that is where a standard 12″x8″x16″ is used.
